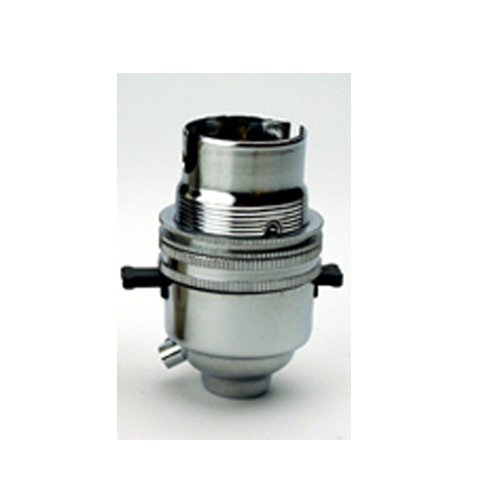

Bayonet Cap Chrome Switched Lampholder 10mm Entry
An excellent option for sprucing up a sentimental table lamp or light fitting of your own design. With the sliding bar switch on the connection unit, it adds a beautiful timeless feature to the light fitting.

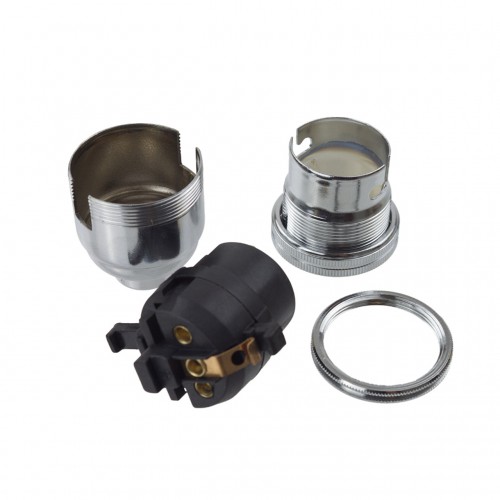

Comes in 4 parts comprising of the cap which is the section that screws onto the fixing of the light fitting, the centre connection unit where you will connect the live (Brown) and neutral (Blue) and Earth (Yellow and Green) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).
As With ALL metal lampholders, ensure you use a 3 core mains flex to provide an earth connection to this lampholder.
Spec:
An excellent option for sprucing up a sentimental table lamp or light fitting of your own design. With the sliding bar switch on the connection unit, it adds a beautiful timeless feature to the light fitting.
Comes in 4 parts comprising of the cap which is the section that screws onto the fixing of the light fitting, the centre connection unit where you will connect the live (Brown) and neutral (Blue) and Earth (Yellow and Green) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).
As With ALL metal lampholders, ensure you use a 3 core mains flex to provide an earth connection to this lampholder.
Spec:
- Lamp Cap: BC | B22 | Bayonet Cap
- Thread: 10mm x 1mm Pitch
- Height: 62.6mm
- Diameter: 31.6mm
- Min Shade Hole Size: 26mm
- Max Shade Hole Size: 31mm
- Max Wattage: 60w
- Material: Brass
- Finish: Chrome
Chrome Pushbar lampholder
- Product Code: 3.301.10.E.CHR
- Availability: 10
-
£5.37
